Kubernetes TroubleShooting
쿠버네티스에서 자주 발생하는 장애상황과 해결방법에 대해서 살펴보자.
- Application Failure
- Control Plane Failure
- Worker Node Failure
- Network Failure
Case 1) Application Failure
1. 서비스 target port를 잘못 지정한 경우
2. 서비스명을 잘못 지정한 경우
3. 환경설정이 잘못된 경우(예를 들면 데이터베이스 비밀번호)
4. 서비스의 selector 설정을 잘못 지정한 경우
<user> <--- <web-service> <-- <webapp-mysql> <-- <mysql-service> <-- <mysql>
What to do
# 유저가 서비스 이용을 할 수 있는지 확인
curl http://web-service-ip:port
# 서비스의 엔드포인트가 할당이 되었는지 확인
kubectl get ep
# 환경설정에 문제가 없는지 확인
kubectl describe po <pod_name>
kubectl logs -f <pod_name> (--previous)

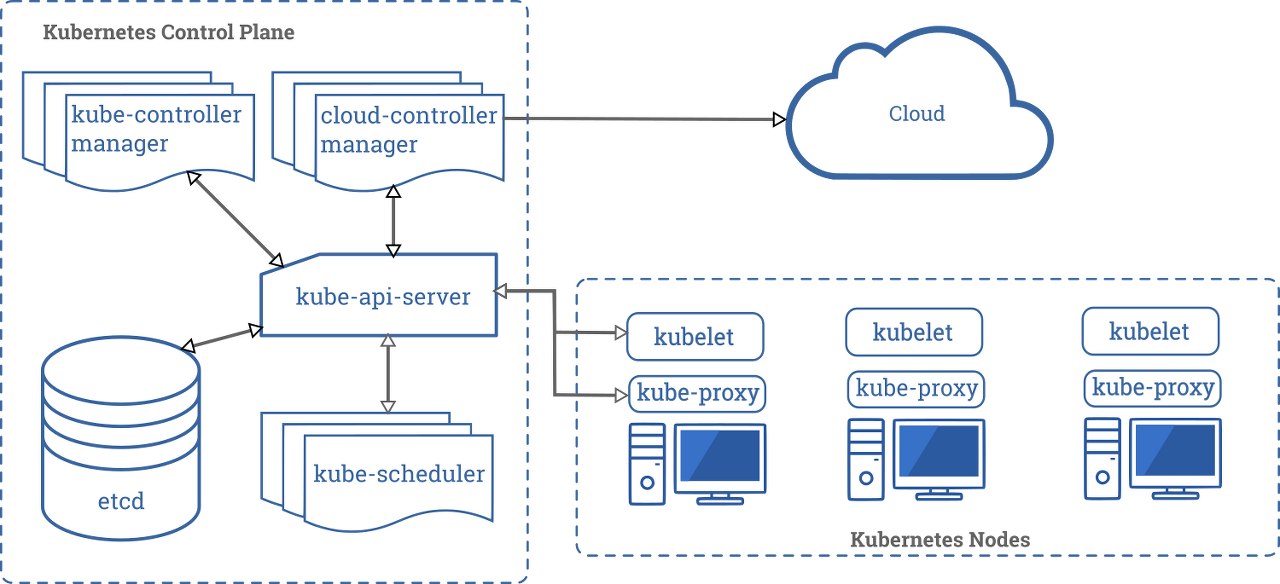

Case 2) Control Plane Failure
What to do
# controlplane pod 상태 검사
kubectl get po -n kube-system
# controlplane pod 로그 확인
k get po -n kube-system | grep control
k logs -f <pod_name> -n kube-system
etcd-kind-cluster-control-plane 1/1 Running 0 28m
etcd-kind-cluster-control-plane2 1/1 Running 0 27m
etcd-kind-cluster-control-plane3 1/1 Running 0 27m
kube-apiserver-kind-cluster-control-plane 1/1 Running 0 28m
kube-apiserver-kind-cluster-control-plane2 1/1 Running 0 27m
kube-apiserver-kind-cluster-control-plane3 1/1 Running 1 27m
kube-controller-manager-kind-cluster-control-plane 1/1 Running 1 28m
kube-controller-manager-kind-cluster-control-plane2 1/1 Running 0 27m
kube-controller-manager-kind-cluster-control-plane3 1/1 Running 0 27m
kube-scheduler-kind-cluster-control-plane 1/1 Running 1 28m
kube-scheduler-kind-cluster-control-plane2 1/1 Running 0 26m
kube-scheduler-kind-cluster-control-plane3 1/1 Running 0 27m
만약 필수적으로 있어야하는 컴포넌트가 kube-system 네임스페이스의 pod 리스트에 나타나지 않는다면 manifest 파일을 확인해하자.
몇몇 컴포넌트들은 pod 이름에 실행중인 노드의 이름(static pod)이 붙는다.(kube-apiserver-kind-cluster-control-plane)
static pod의 manifest 파일의 위치는 보통 /etc/kubernetes/manifest 이다. manifest 파일을 열어보고 설정이 잘못되어있는지 확인한다.
root@controlplane:/etc/kubernetes/manifests# ls
etcd.yaml kube-apiserver.yaml kube-controller-manager.yaml kube-scheduler.yaml
참고로 시스템 로그를 확인하고 싶다면 journalctl를 활용하자.
sudo journalctl -u kube-apiserver
Worker Node Failure
- kubelet
- kube-proxy
What todo
# 워커 노드 조회
k get no | grep worker
kind-cluster-worker Ready <none> 40m v1.18.2
kind-cluster-worker2 Ready <none> 40m v1.18.2
kind-cluster-worker3 Ready <none> 40m v1.18.2
# 워커노드 상세 조회
k describe no kind-cluster-worker
kind-cluster-worker
Name: kind-cluster-worker
Roles: <none>
Labels: beta.kubernetes.io/arch=amd64
beta.kubernetes.io/os=linux
kubernetes.io/arch=amd64
kubernetes.io/hostname=kind-cluster-worker
kubernetes.io/os=linux
Annotations: kubeadm.alpha.kubernetes.io/cri-socket: unix:///run/containerd/containerd.sock
node.alpha.kubernetes.io/ttl: 0
volumes.kubernetes.io/controller-managed-attach-detach: true
CreationTimestamp: Sat, 11 Sep 2021 13:33:52 +0900
Taints: <none>
Unschedulable: false
Lease:
HolderIdentity: kind-cluster-worker
AcquireTime: <unset>
RenewTime: Sat, 11 Sep 2021 14:15:11 +0900
Conditions:
Type Status LastHeartbeatTime LastTransitionTime Reason Message
---- ------ ----------------- ------------------ ------ -------
MemoryPressure False Sat, 11 Sep 2021 14:14:10 +0900 Sat, 11 Sep 2021 13:33:52 +0900 KubeletHasSufficientMemory kubelet has sufficient memory available
DiskPressure False Sat, 11 Sep 2021 14:14:10 +0900 Sat, 11 Sep 2021 13:33:52 +0900 KubeletHasNoDiskPressure kubelet has no disk pressure
PIDPressure False Sat, 11 Sep 2021 14:14:10 +0900 Sat, 11 Sep 2021 13:33:52 +0900 KubeletHasSufficientPID kubelet has sufficient PID available
Ready True Sat, 11 Sep 2021 14:14:10 +0900 Sat, 11 Sep 2021 13:34:12 +0900 KubeletReady kubelet is posting ready status
Addresses:
InternalIP: 172.18.0.5
Hostname: kind-cluster-worker
Capacity:
cpu: 6
ephemeral-storage: 61255492Ki
hugepages-1Gi: 0
hugepages-2Mi: 0
memory: 2034968Ki
pods: 110
Allocatable:
cpu: 6
ephemeral-storage: 61255492Ki
hugepages-1Gi: 0
hugepages-2Mi: 0
memory: 2034968Ki
pods: 110
System Info:
Machine ID: ec42c7f79c1042d7ab10c3d1374cce50
System UUID: 28ec7417-523f-4269-b855-0868e56b2a17
Boot ID: fbeca5f2-a9ad-45b8-a6a5-f50b368b90f9
Kernel Version: 5.10.25-linuxkit
OS Image: Ubuntu 20.04 LTS
Operating System: linux
Architecture: amd64
Container Runtime Version: containerd://1.3.3-14-g449e9269
Kubelet Version: v1.18.2
Kube-Proxy Version: v1.18.2
PodCIDR: 10.244.4.0/24
PodCIDRs: 10.244.4.0/24
ProviderID: kind://docker/kind-cluster/kind-cluster-worker
Non-terminated Pods: (2 in total)
Namespace Name CPU Requests CPU Limits Memory Requests Memory Limits AGE
--------- ---- ------------ ---------- --------------- ------------- ---
kube-system kindnet-8mspw 100m (1%) 100m (1%) 50Mi (2%) 50Mi (2%) 41m
kube-system kube-proxy-rb6tg 0 (0%) 0 (0%) 0 (0%) 0 (0%) 41m
Allocated resources:
(Total limits may be over 100 percent, i.e., overcommitted.)
Resource Requests Limits
-------- -------- ------
cpu 100m (1%) 100m (1%)
memory 50Mi (2%) 50Mi (2%)
ephemeral-storage 0 (0%) 0 (0%)
hugepages-1Gi 0 (0%) 0 (0%)
hugepages-2Mi 0 (0%) 0 (0%)
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal NodeHasSufficientMemory 41m (x8 over 41m) kubelet Node kind-cluster-worker status is now: NodeHasSufficientMemory
Normal NodeHasNoDiskPressure 41m (x8 over 41m) kubelet Node kind-cluster-worker status is now: NodeHasNoDiskPressure
Normal Starting 41m kube-proxy Starting kube-proxy.워커 노드를 상세조회하면 Condition 항목이 있는데 이를 통해 OutOfDisk, MemoryPresure, DiskPresure, PIDPresure 상태를 살펴볼 수 있다.
예를들면 MemoryPresure 생태가 True이면 메모리가 부족하다는 이야기이다.
각 노드에 접속하여 top, df -h 등으로 보다 상세하게 노드의 상태를 검사할 수 있다.
가끔 상태가 Unknown인 경우가 있는데 이때는 kubelet 상태를 의심해보아야한다.
service kubelet status
sudo journalctl -u kubelet (-f)보통 kubelet 설정 파일의 위치는 /var/lib/kubelet/config 이므로 파일을 열어 설정이 잘못되었는지 확인한다.
그 뒤 변경이 있으면 systemctl daemon-reload -> systemctl restart kubelet 을 실행하여 변경내용을 적용하자.
혹은 kubelet manifest 파일 내용이 잘못되었을지 모른다.
파일의 위치는 보통 /etc/kubernetes/kubelet.conf 이므로 잘못된 정보가 있는지 확인한다.
예를들면 kube-apiserver의 port가 잘못설정되어있을 수 있다.
참고) kubelet certificate 확인
openssl -x509 -in /var/lib/kubelet/worker-1.crt -text(right CA, right croup ...)
Certificate:
Data: xxx
Signature Algorithm: xxx
Issuer: xxx
Validity
Not Before: xxx
Not After : xxx
Subject: xxx
...
Networking Failure
- CNI : kubelet configuration에서 cin-bin-dir, network-pluin 설정이 제대로 되어 있는지 확인.
- DNS
- Proxy
What to do for DNS failure
kubectl edit cm coredns -n kube-system
apiVersion: v1
data:
Corefile: |
.:53 {
errors
health {
lameduck 5s
}
ready
kubernetes cluster.local in-addr.arpa ip6.arpa {
pods insecure
fallthrough in-addr.arpa ip6.arpa
ttl 30
}
prometheus :9153
forward . /etc/resolv.conf
cache 30
loop
reload
loadbalance
}
kind: ConfigMap
metadata:
creationTimestamp: "2021-09-11T04:32:04Z"
name: coredns
namespace: kube-system
resourceVersion: "247"
selfLink: /api/v1/namespaces/kube-system/configmaps/coredns
uid: 2f2d4f33-0ef1-4e37-b215-2e4034aac6f7Port 53은 DNS resolution으로 사용되고 있다.
coreDNS 문제는 3가지로 나뉠 수 있다.
첫째, coredns pod가 pending 상태일 경우 : 네트워크 플러그인이 정상적으로 설치되었는지 확인하자.
둘째, coredns pod가 CrashLoopBackOff 또는 에러 상태일 경우 : 설치된 OS와 도커의 버전 및 권한 문제일 수 있다.
셋째, coredns와 관련된 pod가 모두 정상일 경우 : 서비스 엔드포인트, selector, port를 확인하자.
kubectl get ep kube-dns -n kube-system
NAME ENDPOINTS AGE
kube-dns 10.244.0.3:53,10.244.0.4:53,10.244.0.3:9153 + 3 more... 72m
What to do for Proxy failure
kubeproxy is responsible for watching services and endpoint associated with each service. When the client is going to connect to the service using the virtual IP the kubeproxy is responsible for sending traffic to actual pods.
kube-proxy는 daemonset으로 배포된다.
k describe ds kube-proxy -n kube-system
Name: kube-proxy
Selector: k8s-app=kube-proxy
Node-Selector: kubernetes.io/os=linux
Labels: k8s-app=kube-proxy
Annotations: deprecated.daemonset.template.generation: 1
Desired Number of Nodes Scheduled: 6
Current Number of Nodes Scheduled: 6
Number of Nodes Scheduled with Up-to-date Pods: 6
Number of Nodes Scheduled with Available Pods: 6
Number of Nodes Misscheduled: 0
Pods Status: 6 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
Labels: k8s-app=kube-proxy
Service Account: kube-proxy
Containers:
kube-proxy:
Image: k8s.gcr.io/kube-proxy:v1.18.2
Port: <none>
Host Port: <none>
Command:
/usr/local/bin/kube-proxy
--config=/var/lib/kube-proxy/config.conf
--hostname-override=$(NODE_NAME)
Environment:
NODE_NAME: (v1:spec.nodeName)
Mounts:
/lib/modules from lib-modules (ro)
/run/xtables.lock from xtables-lock (rw)
/var/lib/kube-proxy from kube-proxy (rw)
Volumes:
kube-proxy:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: kube-proxy
Optional: false
xtables-lock:
Type: HostPath (bare host directory volume)
Path: /run/xtables.lock
HostPathType: FileOrCreate
lib-modules:
Type: HostPath (bare host directory volume)
Path: /lib/modules
HostPathType:
Priority Class Name: system-node-critical
Events: <none>
kube-proxy pod 가 정상 상태가 아니거나 로그 확인 결과 문제점이 있는 경우가 있다.
k get po -n kube-system | grep kube-proxy
k logs <pod_name> -n kube-system
kube-proxy-4g89x 1/1 Running 0 83m
kube-proxy-6tp9m 1/1 Running 0 85m
kube-proxy-lvvh5 1/1 Running 0 84m
kube-proxy-r5vqz 1/1 Running 0 83m
kube-proxy-rb6tg 1/1 Running 0 83m
kube-proxy-t58hp 1/1 Running 0 83m또는 컨테이너 내부에서 kube-proxy가 정상적으로 동작하고 있지 않은 경우가 있다.
# netstat -plan | grep kube-proxy
tcp 0 0 0.0.0.0:30081 0.0.0.0:* LISTEN 1/kube-proxy
tcp 0 0 127.0.0.1:10249 0.0.0.0:* LISTEN 1/kube-proxy
tcp 0 0 172.17.0.12:33706 172.17.0.12:6443 ESTABLISHED 1/kube-proxy
tcp6 0 0 :::10256 :::*이때에는 kube-proxy damonset 정의가 올바르게 되어 있는지 확인해보자. 특히 kube-proxy binary 가 올바르게 작성되어있는지 확인하자.
